概要
本サンプルはFortran言語によりLAPACKルーチンZGGSVDを利用するサンプルプログラムです。
一般化特異値分解を行います。
ここで
及び
の条件数の推定値と計算された一般化特異値の誤差限界も合わせて求めます。この例題プログラムは
であることを想定していますが、そうでない場合には若干のコード変更が必要です。
入力データ
（本ルーチンの詳細はZGGSVD のマニュアルページを参照）| このデータをダウンロード |

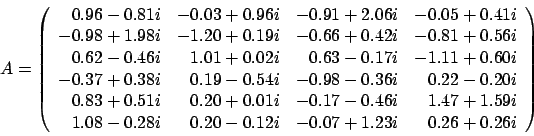

ZGGSVD Example Program Data 6 4 2 :Values of M, N and P ( 0.96,-0.81) (-0.03, 0.96) (-0.91, 2.06) (-0.05, 0.41) (-0.98, 1.98) (-1.20, 0.19) (-0.66, 0.42) (-0.81, 0.56) ( 0.62,-0.46) ( 1.01, 0.02) ( 0.63,-0.17) (-1.11, 0.60) ( 0.37, 0.38) ( 0.19,-0.54) (-0.98,-0.36) ( 0.22,-0.20) ( 0.83, 0.51) ( 0.20, 0.01) (-0.17,-0.46) ( 1.47, 1.59) ( 1.08,-0.28) ( 0.20,-0.12) (-0.07, 1.23) ( 0.26, 0.26) :End of matrix A ( 1.00, 0.00) ( 0.00, 0.00) (-1.00, 0.00) ( 0.00, 0.00) ( 0.00, 0.00) ( 1.00, 0.00) ( 0.00, 0.00) (-1.00, 0.00) :End of matrix B
出力結果
（本ルーチンの詳細はZGGSVD のマニュアルページを参照）| この出力例をダウンロード |
ZGGSVD Example Program Results
Number of infinite generalized singular values (K)
2
Number of finite generalized singular values (L)
2
Numerical rank of (A**H B**H)**H (K+L)
4
Finite generalized singular values
2.0720E+00 1.1058E+00
Unitary matrix U
1 2
1 ( -1.3038E-02, -3.2595E-01) ( -1.4039E-01, -2.6167E-01)
2 ( 4.2764E-01, -6.2582E-01) ( 8.6298E-02, -3.8174E-02)
3 ( -3.2595E-01, 1.6428E-01) ( 3.8163E-01, -1.8219E-01)
4 ( 1.5906E-01, -5.2151E-03) ( -2.8207E-01, 1.9732E-01)
5 ( -1.7210E-01, -1.3038E-02) ( -5.0942E-01, -5.0319E-01)
6 ( -2.6336E-01, -2.4772E-01) ( -1.0861E-01, 2.8474E-01)
3 4
1 ( 2.5177E-01, -7.9789E-01) ( -5.0956E-02, -2.1750E-01)
2 ( -3.2188E-01, 1.6112E-01) ( 1.1979E-01, 1.6319E-01)
3 ( 1.3231E-01, -1.4565E-02) ( -5.0671E-01, 1.8615E-01)
4 ( 2.1598E-01, 1.8813E-01) ( -4.0163E-01, 2.6787E-01)
5 ( 3.6488E-02, 2.0316E-01) ( 1.9271E-01, 1.5574E-01)
6 ( 1.0906E-01, -1.2712E-01) ( -8.8159E-02, 5.6169E-01)
5 6
1 ( -4.5947E-02, 1.4052E-04) ( -5.2773E-02, -2.2492E-01)
2 ( -8.0311E-02, -4.3605E-01) ( -3.8117E-02, -2.1907E-01)
3 ( 5.9714E-02, -5.8974E-01) ( -1.3850E-01, -9.0941E-02)
4 ( -4.6443E-02, 3.0864E-01) ( -3.7354E-01, -5.5148E-01)
5 ( 5.7843E-01, -1.2439E-01) ( -1.8815E-02, -5.5686E-02)
6 ( 1.5763E-02, 4.7130E-02) ( 6.5007E-01, 4.9173E-03)
Unitary matrix V
1 2
1 ( 9.8930E-01, 1.9041E-19) ( -1.1461E-01, 9.0250E-02)
2 ( -1.1461E-01, -9.0250E-02) ( -9.8930E-01, 1.9041E-19)
Unitary matrix Q
1 2
1 ( 7.0711E-01, 0.0000E+00) ( 0.0000E+00, 0.0000E+00)
2 ( 0.0000E+00, 0.0000E+00) ( 7.0711E-01, 0.0000E+00)
3 ( 7.0711E-01, 0.0000E+00) ( 0.0000E+00, 0.0000E+00)
4 ( 0.0000E+00, 0.0000E+00) ( 7.0711E-01, 0.0000E+00)
3 4
1 ( 6.9954E-01, 4.7274E-19) ( 8.1044E-02, -6.3817E-02)
2 ( -8.1044E-02, -6.3817E-02) ( 6.9954E-01, -4.7274E-19)
3 ( -6.9954E-01, -4.7274E-19) ( -8.1044E-02, 6.3817E-02)
4 ( 8.1044E-02, 6.3817E-02) ( -6.9954E-01, 4.7274E-19)
Nonsingular upper triangular matrix R
1 2
1 ( -2.7118E+00, 0.0000E+00) ( -1.4390E+00, -1.0315E+00)
2 ( -1.8583E+00, 0.0000E+00)
3
4
3 4
1 ( -7.6930E-02, 1.3613E+00) ( -2.8137E-01, -3.2425E-02)
2 ( -1.0760E+00, 3.1016E-02) ( 1.3292E+00, 3.6772E-01)
3 ( 3.2537E+00, 0.0000E+00) ( -6.3858E-17, 6.3858E-17)
4 ( -2.1084E+00, 0.0000E+00)
Estimate of reciprocal condition number for R
1.3E-01
Error estimate for the generalized singular values
1.7E-15
ソースコード
（本ルーチンの詳細はZGGSVD のマニュアルページを参照）※本サンプルソースコードのご利用手順は「サンプルのコンパイル及び実行方法」をご参照下さい。
| このソースコードをダウンロード |
Program zggsvd_example
! ZGGSVD Example Program Text
! Copyright 2017, Numerical Algorithms Group Ltd. http://www.nag.com
! .. Use Statements ..
Use lapack_example_aux, Only: nagf_file_print_matrix_complex_gen_comp
Use lapack_interfaces, Only: zggsvd3, ztrcon
Use lapack_precision, Only: dp
! .. Implicit None Statement ..
Implicit None
! .. Parameters ..
Integer, Parameter :: nin = 5, nout = 6
! .. Local Scalars ..
Real (Kind=dp) :: eps, rcond, serrbd
Integer :: i, ifail, info, irank, j, k, l, lda, ldb, ldq, ldu, ldv, &
lwork, m, n, p
! .. Local Arrays ..
Complex (Kind=dp), Allocatable :: a(:, :), b(:, :), q(:, :), u(:, :), &
v(:, :), work(:)
Real (Kind=dp), Allocatable :: alpha(:), beta(:), rwork(:)
Integer, Allocatable :: iwork(:)
Character (1) :: clabs(1), rlabs(1)
! .. Intrinsic Procedures ..
Intrinsic :: epsilon
! .. Executable Statements ..
Write (nout, *) 'ZGGSVD Example Program Results'
Write (nout, *)
Flush (nout)
! Skip heading in data file
Read (nin, *)
Read (nin, *) m, n, p
lda = m
ldb = p
ldq = n
ldu = m
ldv = p
Allocate (a(lda,n), b(ldb,n), q(ldq,n), u(ldu,m), v(ldv,p), work(m+3*n), &
alpha(n), beta(n), rwork(2*n), iwork(n))
! Read the m by n matrix A and p by n matrix B from data file
Read (nin, *)(a(i,1:n), i=1, m)
Read (nin, *)(b(i,1:n), i=1, p)
! Compute the generalized singular value decomposition of (A, B)
! (A = U*D1*(0 R)*(Q**H), B = V*D2*(0 R)*(Q**H), m.ge.n)
lwork = m + 3*n
Call zggsvd3('U', 'V', 'Q', m, n, p, k, l, a, lda, b, ldb, alpha, beta, &
u, ldu, v, ldv, q, ldq, work, lwork, rwork, iwork, info)
If (info==0) Then
! Print solution
irank = k + l
Write (nout, *) 'Number of infinite generalized singular values (K)'
Write (nout, 100) k
Write (nout, *) 'Number of finite generalized singular values (L)'
Write (nout, 100) l
Write (nout, *) 'Numerical rank of (A**H B**H)**H (K+L)'
Write (nout, 100) irank
Write (nout, *)
Write (nout, *) 'Finite generalized singular values'
Write (nout, 110)(alpha(j)/beta(j), j=k+1, irank)
Write (nout, *)
Flush (nout)
! ifail: behaviour on error exit
! =0 for hard exit, =1 for quiet-soft, =-1 for noisy-soft
ifail = 0
Call nagf_file_print_matrix_complex_gen_comp('General', ' ', m, m, u, &
ldu, 'Bracketed', '1P,E12.4', 'Unitary matrix U', 'Integer', rlabs, &
'Integer', clabs, 80, 0, ifail)
Write (nout, *)
Flush (nout)
Call nagf_file_print_matrix_complex_gen_comp('General', ' ', p, p, v, &
ldv, 'Bracketed', '1P,E12.4', 'Unitary matrix V', 'Integer', rlabs, &
'Integer', clabs, 80, 0, ifail)
Write (nout, *)
Flush (nout)
Call nagf_file_print_matrix_complex_gen_comp('General', ' ', n, n, q, &
ldq, 'Bracketed', '1P,E12.4', 'Unitary matrix Q', 'Integer', rlabs, &
'Integer', clabs, 80, 0, ifail)
Write (nout, *)
Flush (nout)
Call nagf_file_print_matrix_complex_gen_comp('Upper triangular', &
'Non-unit', irank, irank, a(1,n-irank+1), lda, 'Bracketed', &
'1P,E12.4', 'Nonsingular upper triangular matrix R', 'Integer', &
rlabs, 'Integer', clabs, 80, 0, ifail)
! Call ZTRCON to estimate the reciprocal condition
! number of R
Call ztrcon('Infinity-norm', 'Upper', 'Non-unit', irank, &
a(1,n-irank+1), lda, rcond, work, rwork, info)
Write (nout, *)
Write (nout, *) 'Estimate of reciprocal condition number for R'
Write (nout, 120) rcond
Write (nout, *)
! So long as irank = n, get the machine precision, eps, and
! compute the approximate error bound for the computed
! generalized singular values
If (irank==n) Then
eps = epsilon(1.0E0_dp)
serrbd = eps/rcond
Write (nout, *) 'Error estimate for the generalized singular values'
Write (nout, 120) serrbd
Else
Write (nout, *) '(A**H B**H)**H is not of full rank'
End If
Else
Write (nout, 130) 'Failure in ZGGSVD3. INFO =', info
End If
100 Format (1X, I5)
110 Format (4X, 8(1P,E13.4))
120 Format (3X, 1P, E11.1)
130 Format (1X, A, I4)
End Program
