概要
本サンプルはFortran言語によりLAPACKルーチンDGESVDを利用するサンプルプログラムです。

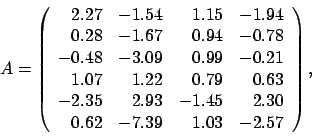

6x4の行列の特異値と左および右特異ベクトルを求めます。
計算された特異値と特異ベクトルの誤差限界近似値も合わせて求めます。
DGESDDの例題プログラムは
の場合の特異値分解を示します。
入力データ
（本ルーチンの詳細はDGESVD のマニュアルページを参照）| このデータをダウンロード |
DGESVD Example Program Data 6 4 :Values of M and N 2.27 -1.54 1.15 -1.94 0.28 -1.67 0.94 -0.78 -0.48 -3.09 0.99 -0.21 1.07 1.22 0.79 0.63 -2.35 2.93 -1.45 2.30 0.62 -7.39 1.03 -2.57 :End of matrix A 1.0 1.0 1.0 1.0 1.0 1.0 :RHS b(1:m)
出力結果
（本ルーチンの詳細はDGESVD のマニュアルページを参照）| この出力例をダウンロード |
DGESVD Example Program Results
Singular values of A:
9.9966 3.6831 1.3569 0.5000
Least squares solution:
-0.0563 -0.1700 0.8202 0.5545
Norm of Residual:
1.7472
ソースコード
（本ルーチンの詳細はDGESVD のマニュアルページを参照）※本サンプルソースコードのご利用手順は「サンプルのコンパイル及び実行方法」をご参照下さい。
| このソースコードをダウンロード |
Program dgesvd_example
! DGESVD Example Program Text
! Copyright 2017, Numerical Algorithms Group Ltd. http://www.nag.com
! .. Use Statements ..
Use lapack_interfaces, Only: dgesvd
Use lapack_precision, Only: dp
! .. Implicit None Statement ..
Implicit None
! .. Parameters ..
Integer, Parameter :: nb = 64, nin = 5, nout = 6, prerr = 0
! .. Local Scalars ..
Integer :: i, info, lda, ldu, ldvt, lwork, m, n
! .. Local Arrays ..
Real (Kind=dp), Allocatable :: a(:, :), a_copy(:, :), b(:), s(:), &
u(:, :), vt(:, :), work(:)
Real (Kind=dp) :: dummy(1, 1)
! .. Intrinsic Procedures ..
Intrinsic :: max, min, nint
! .. Executable Statements ..
Write (nout, *) 'DGESVD Example Program Results'
Write (nout, *)
! Skip heading in data file
Read (nin, *)
Read (nin, *) m, n
lda = m
ldu = m
ldvt = n
Allocate (a(lda,n), a_copy(m,n), s(n), vt(ldvt,n), u(ldu,m), b(m))
! Read the m by n matrix A from data file
Read (nin, *)(a(i,1:n), i=1, m)
! Read the right hand side of the linear system
Read (nin, *) b(1:m)
a_copy(1:m, 1:n) = a(1:m, 1:n)
! Use routine workspace query to get optimal workspace.
lwork = -1
Call dgesvd('A', 'S', m, n, a, lda, s, u, ldu, vt, ldvt, dummy, lwork, &
info)
! Make sure that there is enough workspace for block size nb.
lwork = max(m+4*n+nb*(m+n), nint(dummy(1,1)))
Allocate (work(lwork))
! Compute the singular values and left and right singular vectors
! of A.
Call dgesvd('A', 'S', m, n, a, lda, s, u, ldu, vt, ldvt, work, lwork, &
info)
If (info/=0) Then
Write (nout, 100) 'Failure in DGESVD. INFO =', info
100 Format (1X, A, I4)
Go To 120
End If
! Print the significant singular values of A
Write (nout, *) 'Singular values of A:'
Write (nout, 110) s(1:min(m,n))
110 Format (1X, 4(3X,F11.4))
If (prerr>0) Then
Call compute_error_bounds(m, n, s)
End If
If (m>n) Then
! Compute V*Inv(S)*U^T * b to get least squares solution.
Call compute_least_squares(m, n, a_copy, m, u, ldu, vt, ldvt, s, b)
End If
120 Continue
Contains
Subroutine compute_least_squares(m, n, a, lda, u, ldu, vt, ldvt, s, b)
! .. Use Statements ..
Use blas_interfaces, Only: dgemv, dnrm2
! .. Implicit None Statement ..
Implicit None
! .. Scalar Arguments ..
Integer, Intent (In) :: lda, ldu, ldvt, m, n
! .. Array Arguments ..
Real (Kind=dp), Intent (In) :: a(lda, n), s(n), u(ldu, m), vt(ldvt, n)
Real (Kind=dp), Intent (Inout) :: b(m)
! .. Local Scalars ..
Real (Kind=dp) :: alpha, beta, norm
! .. Local Arrays ..
Real (Kind=dp), Allocatable :: x(:), y(:)
! .. Intrinsic Procedures ..
Intrinsic :: allocated
! .. Executable Statements ..
Allocate (x(n), y(n))
! Compute V*Inv(S)*U^T * b to get least squares solution.
! y = U^T b
alpha = 1._dp
beta = 0._dp
Call dgemv('T', m, n, alpha, u, ldu, b, 1, beta, y, 1)
y(1:n) = y(1:n)/s(1:n)
! x = V y
Call dgemv('T', n, n, alpha, vt, ldvt, y, 1, beta, x, 1)
Write (nout, *)
Write (nout, *) 'Least squares solution:'
Write (nout, 100) x(1:n)
! Find norm of residual ||b-Ax||.
alpha = -1._dp
beta = 1._dp
Call dgemv('N', m, n, alpha, a, lda, x, 1, beta, b, 1)
norm = dnrm2(m, b, 1)
Write (nout, *)
Write (nout, *) 'Norm of Residual:'
Write (nout, 100) norm
If (allocated(x)) Then
Deallocate (x)
End If
If (allocated(y)) Then
Deallocate (y)
End If
100 Format (1X, 4(3X,F11.4))
End Subroutine
Subroutine compute_error_bounds(m, n, s)
! Error estimates for singular values and vectors is computed
! and printed here.
! .. Use Statements ..
Use lapack_interfaces, Only: ddisna
Use lapack_precision, Only: dp
! .. Implicit None Statement ..
Implicit None
! .. Scalar Arguments ..
Integer, Intent (In) :: m, n
! .. Array Arguments ..
Real (Kind=dp), Intent (In) :: s(n)
! .. Local Scalars ..
Real (Kind=dp) :: eps, serrbd
Integer :: i, info
! .. Local Arrays ..
Real (Kind=dp), Allocatable :: rcondu(:), rcondv(:), uerrbd(:), &
verrbd(:)
! .. Intrinsic Procedures ..
Intrinsic :: epsilon
! .. Executable Statements ..
Allocate (rcondu(n), rcondv(n), uerrbd(n), verrbd(n))
! Get the machine precision, EPS and compute the approximate
! error bound for the computed singular values. Note that for
! the 2-norm, S(1) = norm(A)
eps = epsilon(1.0E0_dp)
serrbd = eps*s(1)
! Call DDISNA to estimate reciprocal condition
! numbers for the singular vectors
Call ddisna('Left', m, n, s, rcondu, info)
Call ddisna('Right', m, n, s, rcondv, info)
! Compute the error estimates for the singular vectors
Do i = 1, n
uerrbd(i) = serrbd/rcondu(i)
verrbd(i) = serrbd/rcondv(i)
End Do
! Print the approximate error bounds for the singular values
! and vectors
Write (nout, *)
Write (nout, *) 'Error estimate for the singular values'
Write (nout, 100) serrbd
Write (nout, *)
Write (nout, *) 'Error estimates for the left singular vectors'
Write (nout, 100) uerrbd(1:n)
Write (nout, *)
Write (nout, *) 'Error estimates for the right singular vectors'
Write (nout, 100) verrbd(1:n)
100 Format (4X, 1P, 6E11.1)
End Subroutine
End Program
